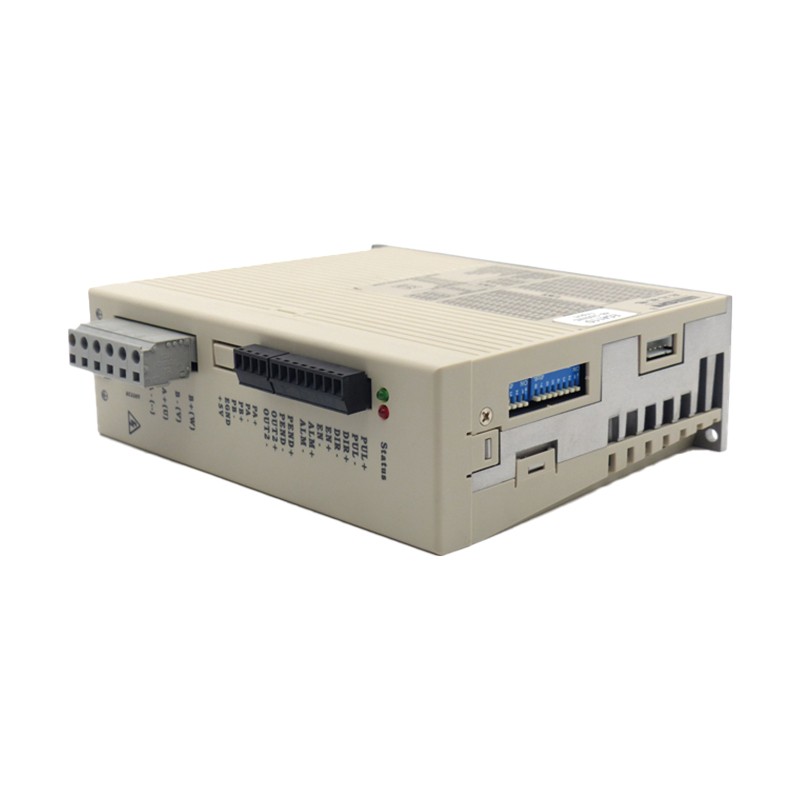

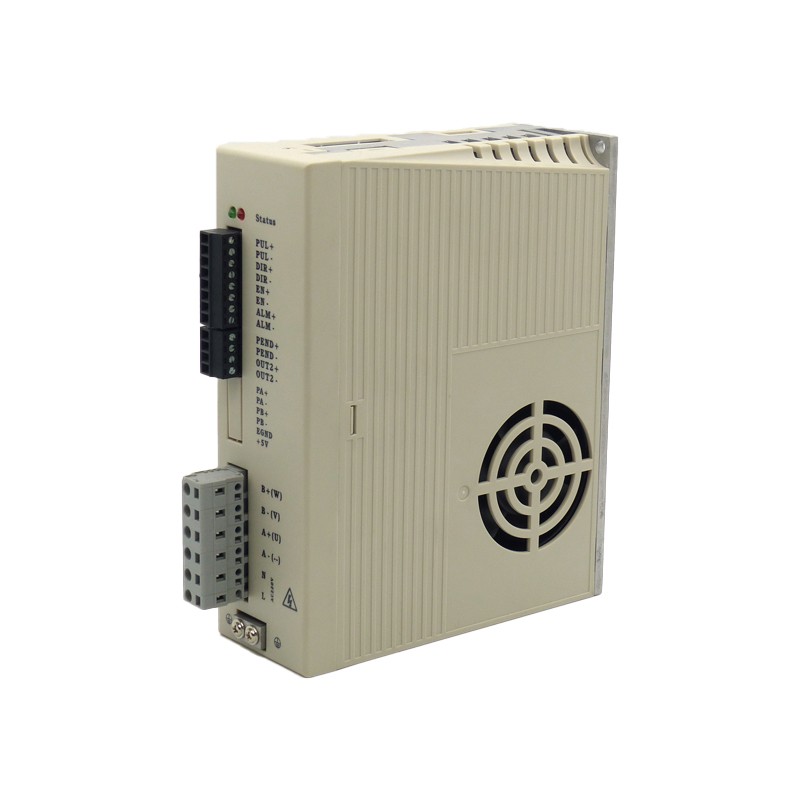

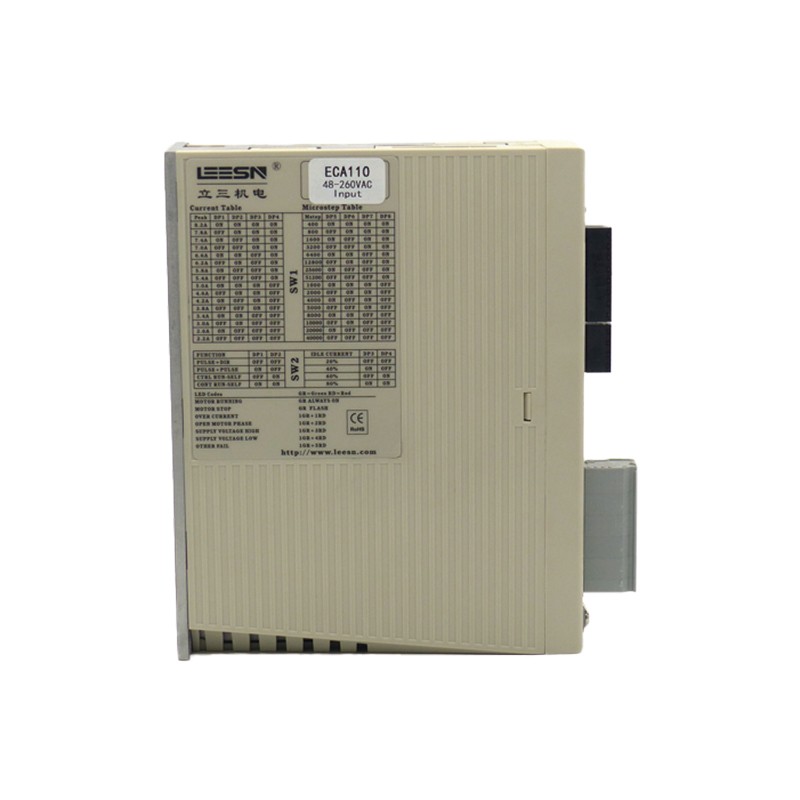

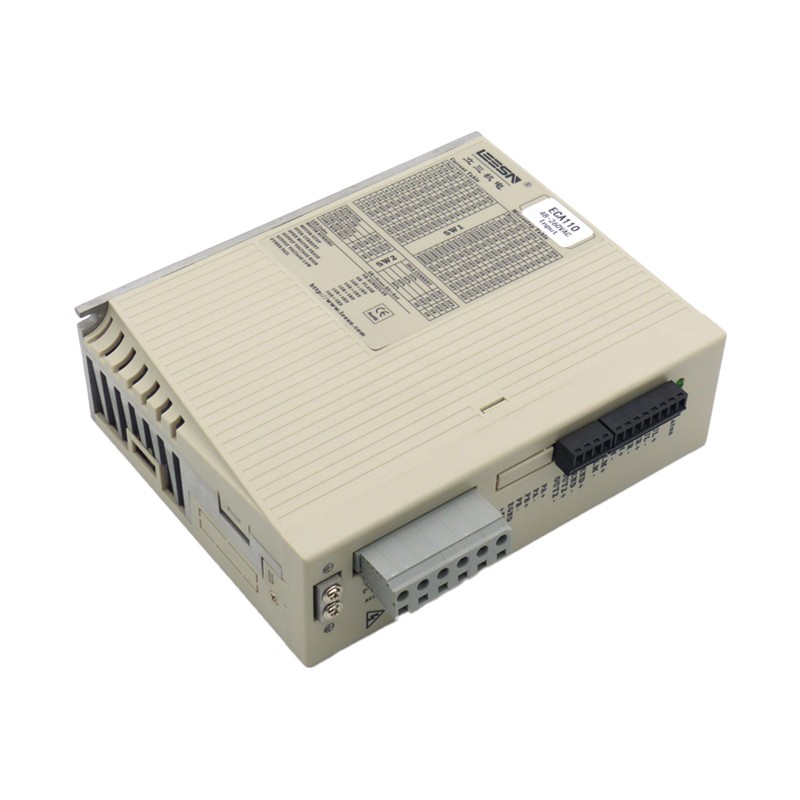

ECA110 Industrial Networks Drives

ECA110Driving characteristic
Supply voltage 48-260VAC
Control mode Pulse and IO compatible
Output current 1.0-8.2A
Digital input 3
Digital output 3
djustable subdivision 16档
Adjustable current 16档
Operating temperature  -20-50℃
authentication CE,RoHS
 IP level IP20
weight 0.95kg
Phase number 2
Default filter frequency 400KHZ
Maximum optional subdivision 51200
type Pulse and IO compatible
 Adaptive motor 86、110、130Stepper motor

Matching products

Specification parameters
    ECA110 is a new generation of high-performance two-phase digital stepper driver based on 32 bit DSP technology developed by Lisan Company. It has various types of two-phase hybrid stepper motors with driving voltage AC48V-260V, adaptive current below 8.2A and outer diameter 86-130mm.

    The driver samples similar to the servo control principle, unique circuit design, superior software algorithm processing, so that the motor can run smoothly even under low subdivision, almost no vibration and noise, smooth and accurate current control technology greatly reduces the motor heat, external 16 speed equal Angle constant torque subdivision, up to 256 subdivision, optocoupling-isolated differential signal input, Strong anti-interference ability, with over-voltage, under-voltage, over-current protection and other error protection functions. In medium and low speed applications such as dispensing machine and laser engraving, its stability, vibration and noise performance advantages are obvious, which can greatly improve the performance of the equipment.
